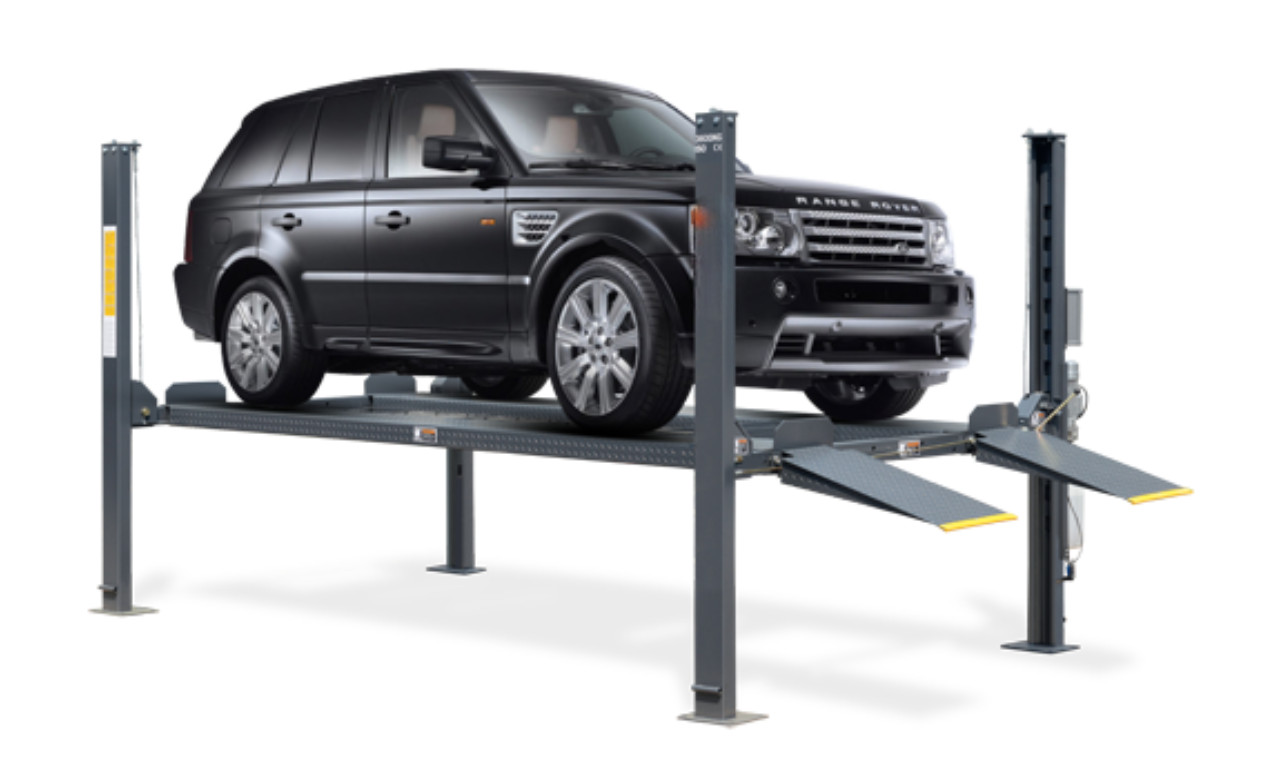

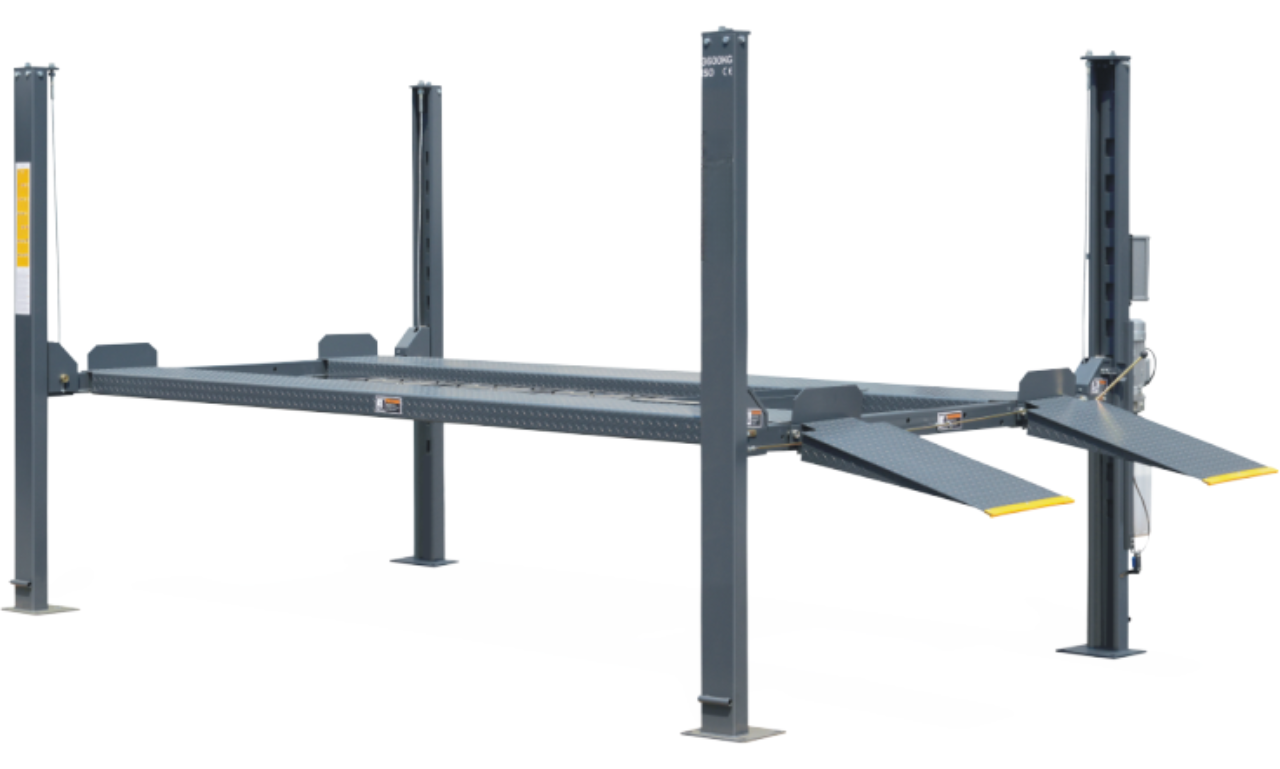

PP8H

FOUR POST CAR LIFT

SUITABLE FOR VEHICLES

Product Description

It use high density slide blocks in the columns, Long service life.

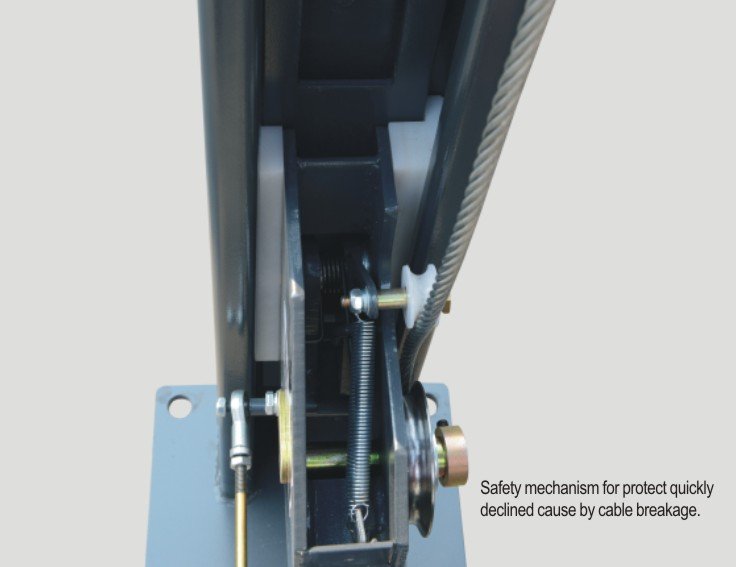

Vertical rise and fall parking lift, It is the ideal equipment for commercial  vehicles and SUV medium and large vehicles parking, Lifting height 2075mm,lifting capacity 8000 lbs. Convenient installation, compact structure, the special mobile fitting  make the whole device  move  convenient when no-load. Manual mechanical safety organ and wire rope fracture protective mechanism, double safety mechanism, more safety. It use high density slide blocks in the columns, Long service life. Explosion-proof throttle valve on the oil tube, It can prevent falling fast because of oil tube burst. The platform is made of high strength antiskid pattern plate overall molding. The special brake block can prevent the vehicles moving. Optional rolling jack, convenient for maintenance vehicles.

Specification

ModeDG-8H
LxWxH5262.5 × 2880 × 2476 mm
Lifting Height2075 mm
Lifting Time50 s
Length of Columns3994 mm
Overall Length5262.5 mm
Inside Soleplate of Columns Width2111 mm
Overall Width2880 mm
Platform Length4200 mm
Lifting Capacity(8000 lbs) 3600 kg
Runway Width475 mm
Width Between Runway955 mm
Packing Size4300 × 570 × 725 mm
Gross Weight840 kg
control box

Optional Control Box

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage:
110v/220v/240v/380v/400v/415v
