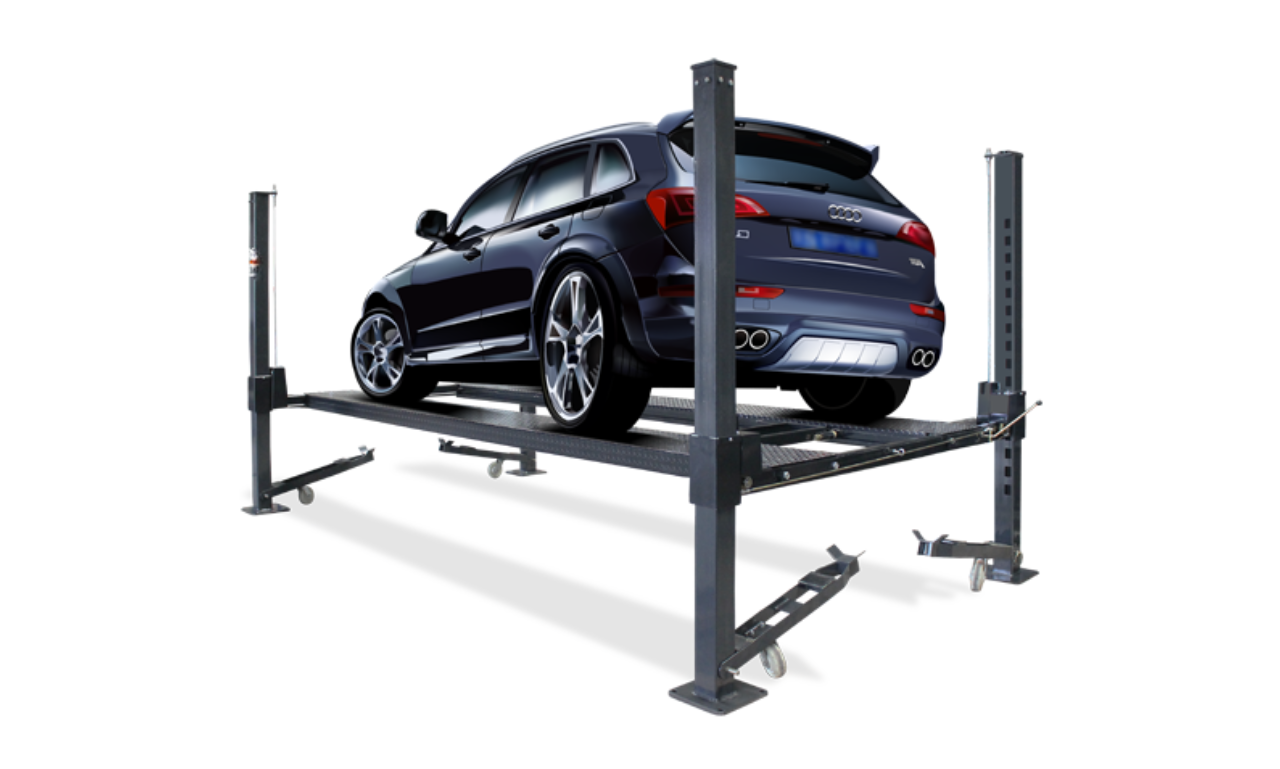

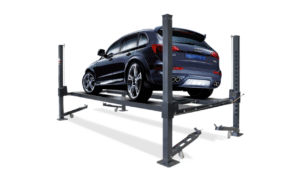

FOUR POST LIFT
SUITABLE FOR VEHICLES
The platform is made of high-quality decorative plate.

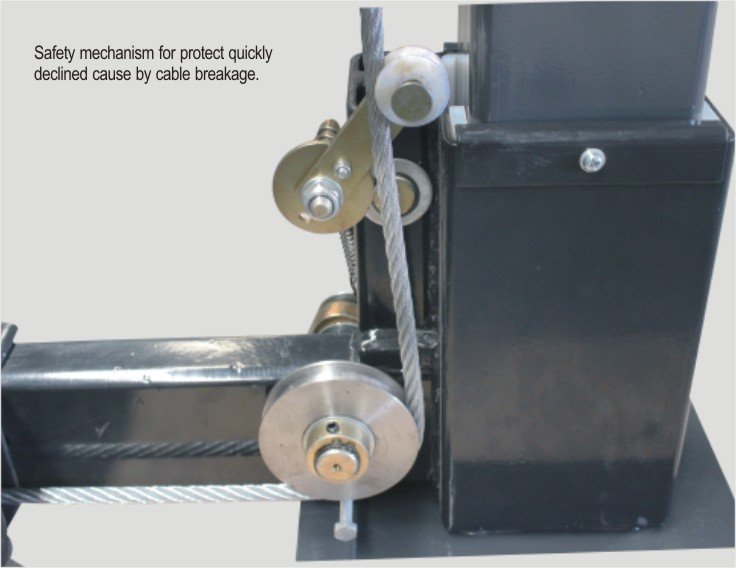

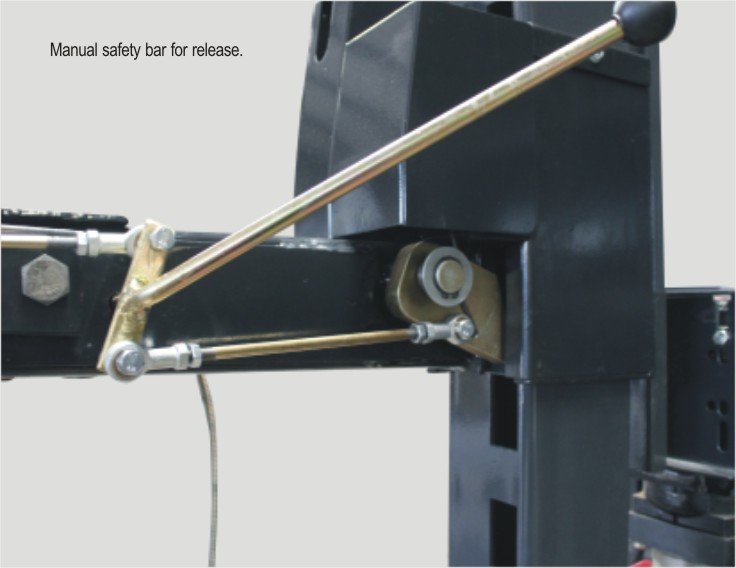

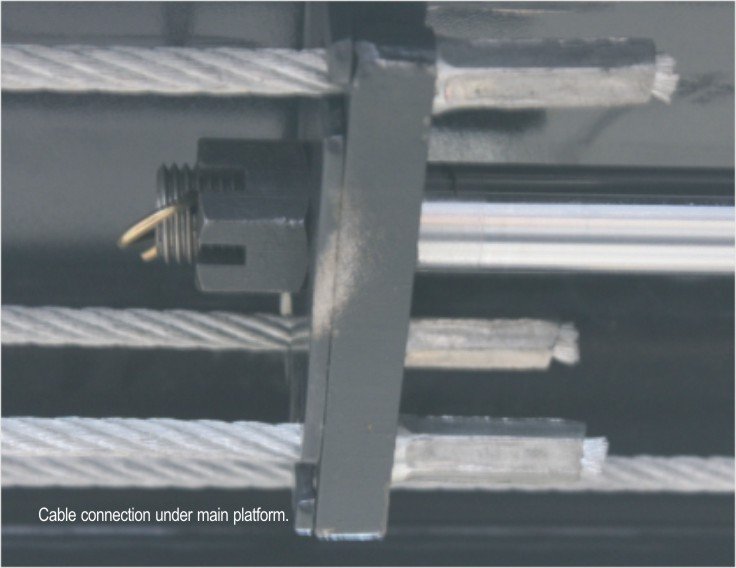

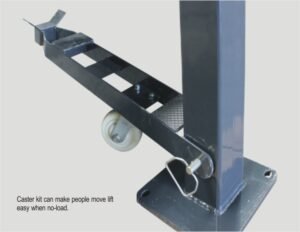

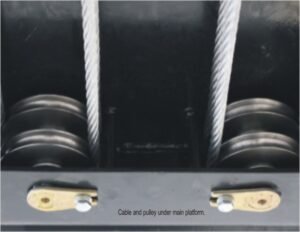

The beam is formed by cold drawing with high strength steel. The platform is made of high-quality decorative plate. The manual mechanical self-resetting unlocking structure can adjust the unlocking lever according to the actual needs within the design range. The unlocking handle is equipped with a metal soft zipper that can be unlocked even at the highest position, which is safe and reliable. Each wire rope is provided with an insurance mechanism to prevent the equipment from falling when the wire rope is broken. Yellow warning parts on the slope.at the same time of warning also protect the ground friction. The columns are made of high strength steel and are formed by cold drawing. Each column has safety holes, which can be locked at any height within the design range. The equipment passed dynamic load test of 125% and static load test of 150%, and passed CE certification. Optional bolt type iron upper plate or plug-in type aluminum alloy upper plate. Each equipment is equipped with four sets of fast-installed mobile pulley set at the bottom of the four columns. Under the condition of no load, the equipment only needs two people to operate, so that the equipment can move freely on the flat ground.
LxWxH | 6213.5 × 2865 × 2516 mm |
---|---|
Lifting Height | 2127 mm |
Lifting Time | 50 s |
Length of Columns | 4522 mm |
Overall Length | 6213.5 mm |
Inside Soleplate of Columns Width | 2561 mm |
Overall Width | 2865 mm |
Platform Length | 4652 mm |
Lifting Capacity | (9000 lbs) 4000 kg |
Runway Width | 475 mm |
Width Between Runway | 964 mm |
Packing Size | 4900 × 570 × 730 mm |
Gross Weight | 1136 kg |
Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage:
110v/220v/240v/380v/400v/415v
