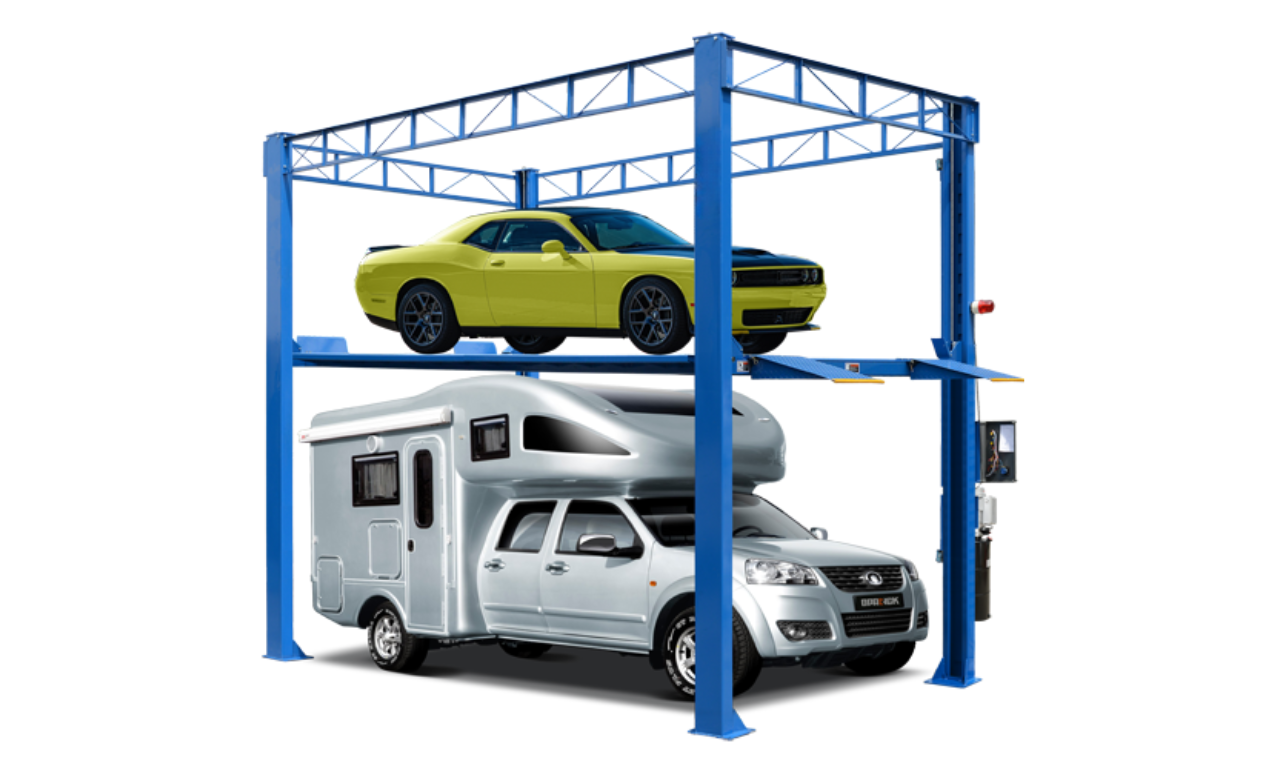

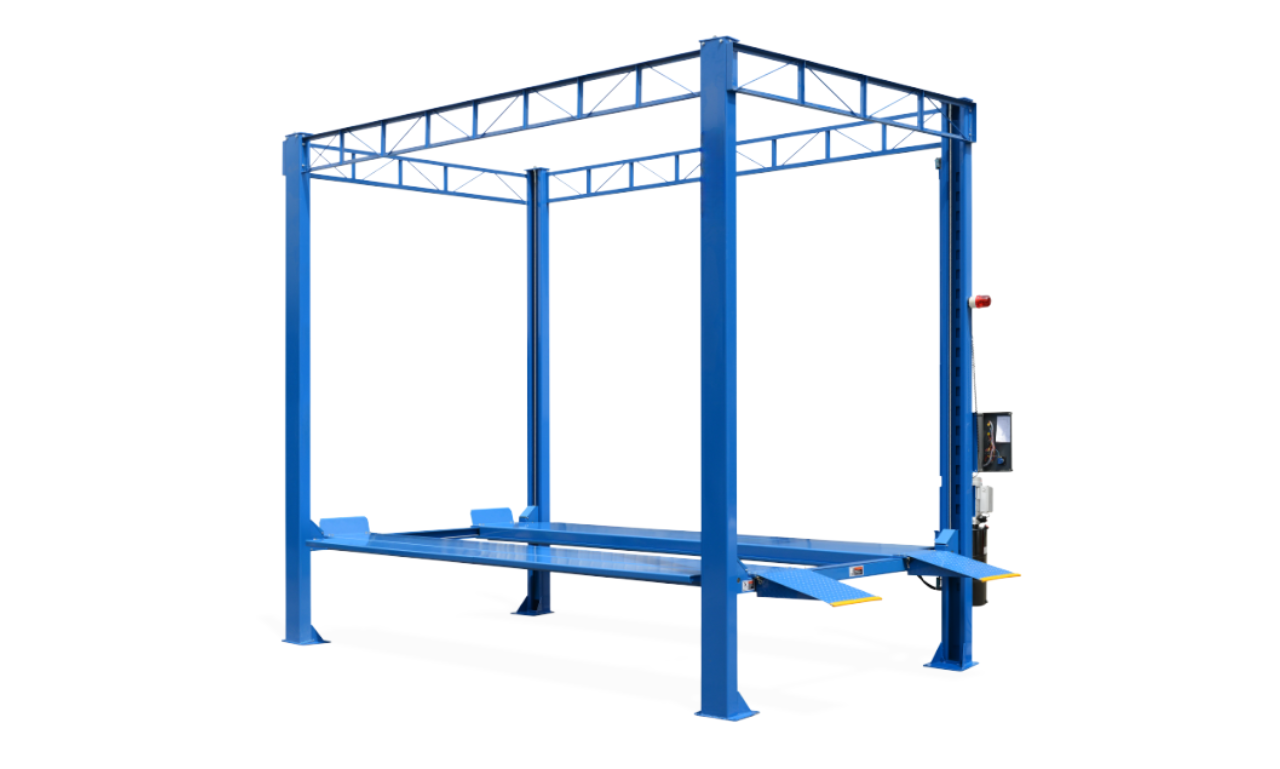

PP-9H

HIGH FOUR-COLUMN PARKING GARAGE

SUITABLE FOR VEHICLES

Product Description

It use high density slide blocks in the columns,Long service life.

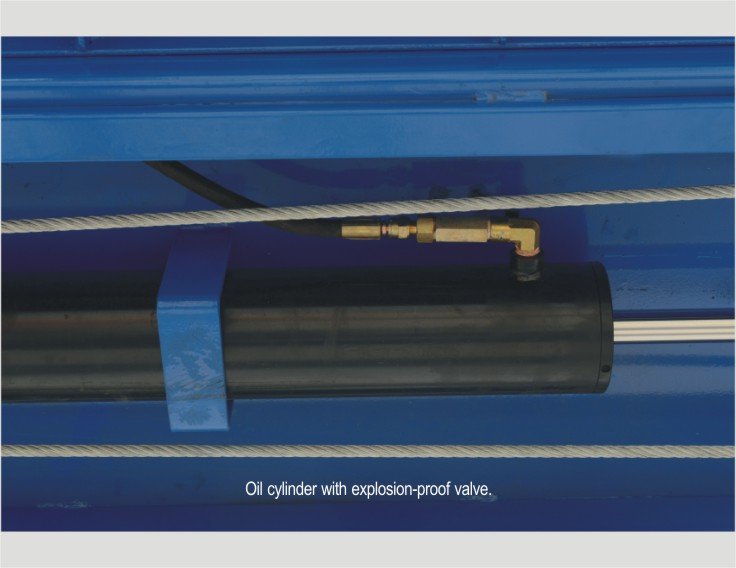

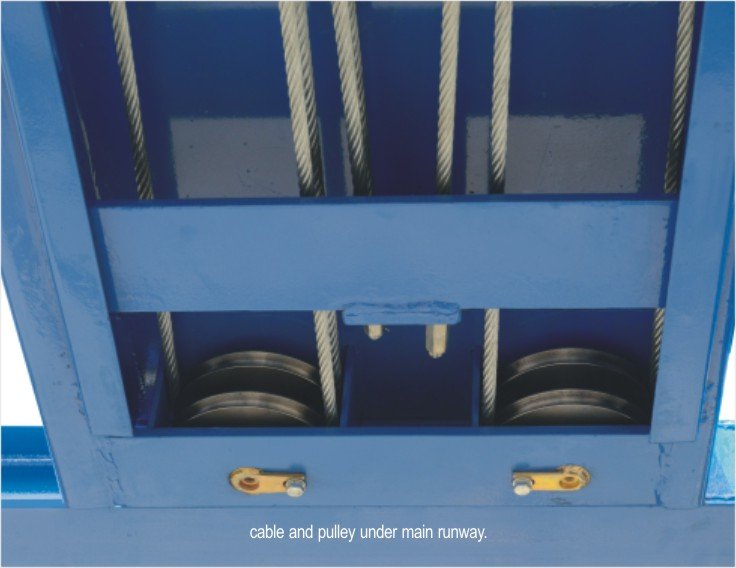

Vertical rise and fall parking lift, It is the ideal equipment for commercial  vehicles and SUV medium and large vehicles parking, Lifting height 3135mm,Lifting capacity 9000 lbs. Convenient installation, compact structure, the special mobile fitting  make the whole device  move  convenient when no-load. Manual mechanical safety organ and wire rope fracture protective mechanism, double safety mechanism, more safety. It use high density slide blocks in the columns,Long service life. Explosion-proof throttle valve on the oil tube, It can prevent falling fast because of oil tube burst. The platform is made of high strength antiskid pattern plate overall molding. The special brake block can prevent the vehicles moving. Optional rolling jack, convenient for maintenance vehicles.

Specification

LxWxH6179 × 4522 × 3135 mm
Lifting Height3135 mm
Lifting Time60 s
Length of Columns4522 mm
Overall Length6179 mm
Inside Soleplate of Columns Width2561 mm
Overall Width3135 mm
Platform Length5220 mm
Lifting Capacity(9000 lbs) 4000 kg
Runway Width508 mm
Width Between Runway1140 mm
Packing Size5220 × 570 × 860 mm
Gross Weight 1/21260 kg / 160 kg
control box

Optional Control Box

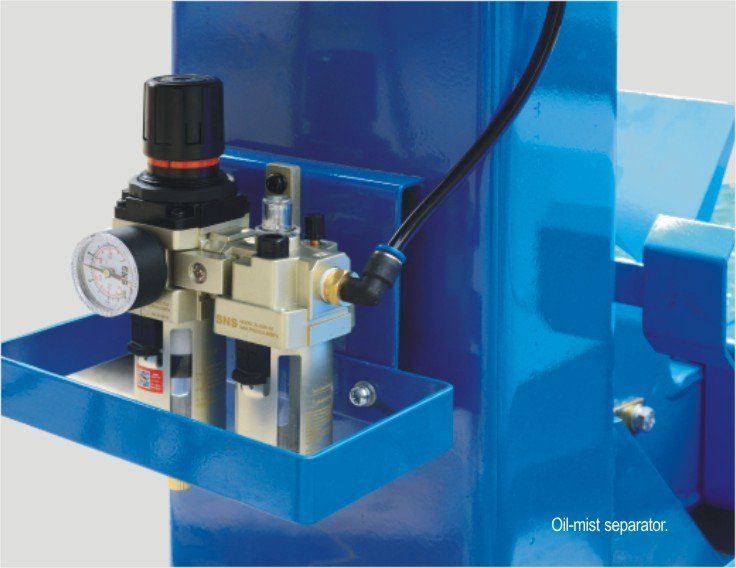

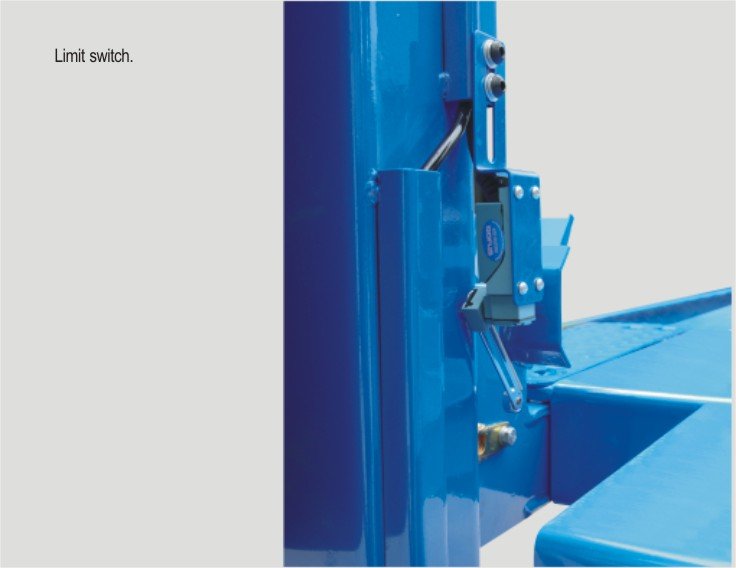

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage:
110v/220v/240v/380v/400v/415v
