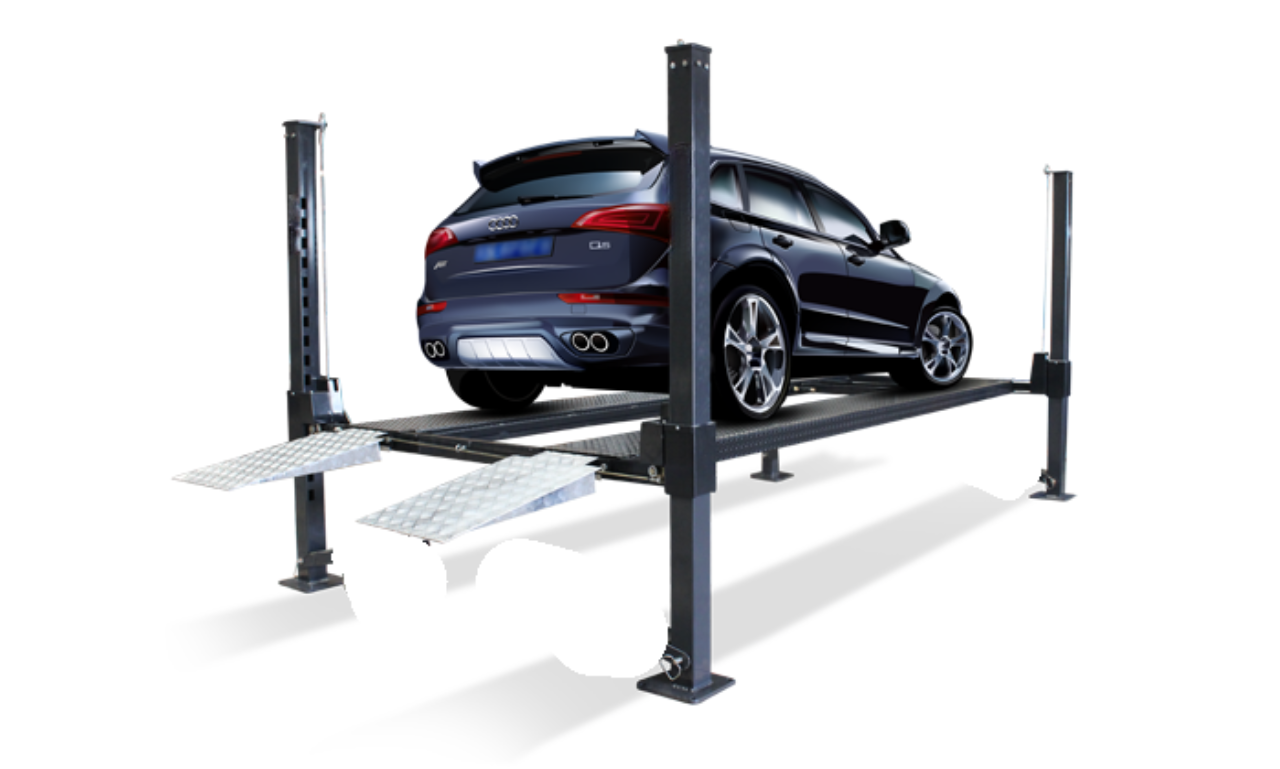

PP-9F

FOUR POST LIFT

SUITABLE FOR VEHICLES

Product Description

Yellow warning parts on the slope.at the same time of warning also protect the ground friction.

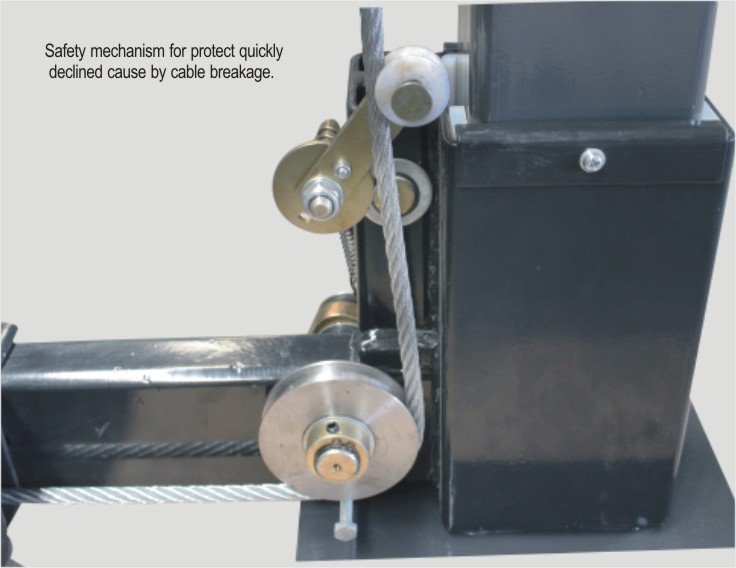

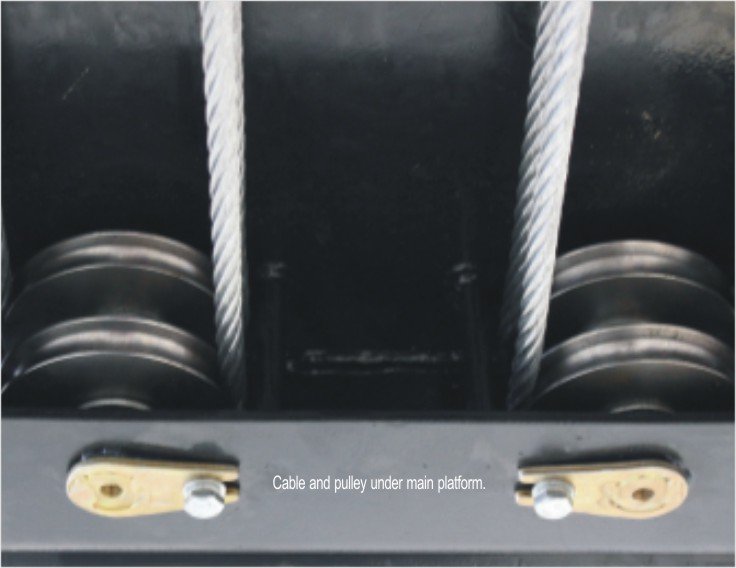

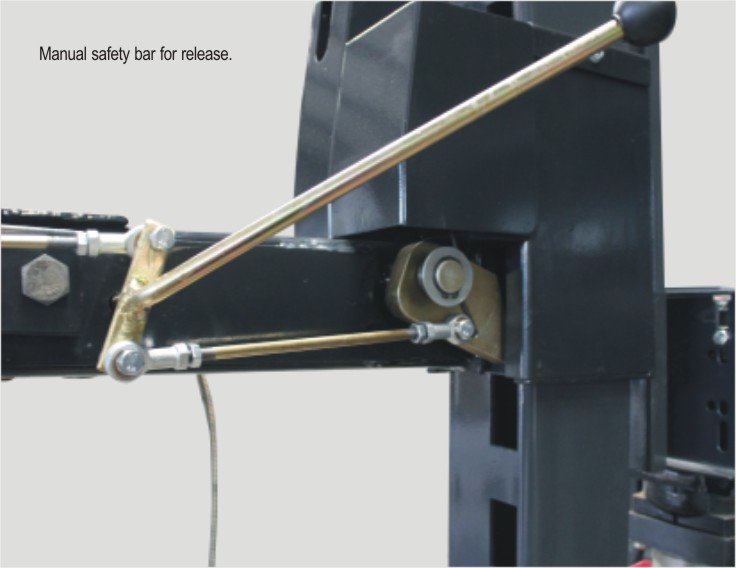

The beam is formed by cold drawing with high strength steel. The platform is made of high-quality decorative plate. The manual mechanical self-resetting unlocking structure can adjust the unlocking lever according to the actual needs within the design range, the unlocking handle is equipped with a metal soft zipper that can be unlocked even at the highest position, which is safe and reliable. Each wire rope is provided with an insurance mechanism to prevent the equipment from falling when the wire rope is broken. Yellow warning parts on the slope.at the same time of warning also protect the ground friction. The columns are made of high strength steel and are formed by cold drawing. each column has safety holes, which can be locked at any height within the design range. The equipment passed dynamic load test of 125% and static load test of 150%, and passed CE certification. Optional bolt type iron upper plate or plug-in type aluminum alloy upper plate. Each equipment is equipped with four sets of fast-installed mobile pulley set at the bottom of the four columns. under the condition of no load, the equipment only needs two people to operate, so that the equipment can move freely on the flat ground.

Specification

LxWxH5283.5 × 2865 × 2260 mm
Lifting Height1872 mm
Lifting Time50 s
Length of Columns4030 mm
Overall Length5283.5 mm
Inside Soleplate of Columns Width2210 mm
Overall Width2865 mm
Platform Length4944 mm
Lifting Capacity(9000 lbs) 4000 kg
Runway Width475 mm
Width Between Runway1025 mm
Packing Size4250 × 570 × 730 mm
Gross Weight890 kg
control box

Optional Control Box

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage:
110v/220v/240v/380v/400v/415v
