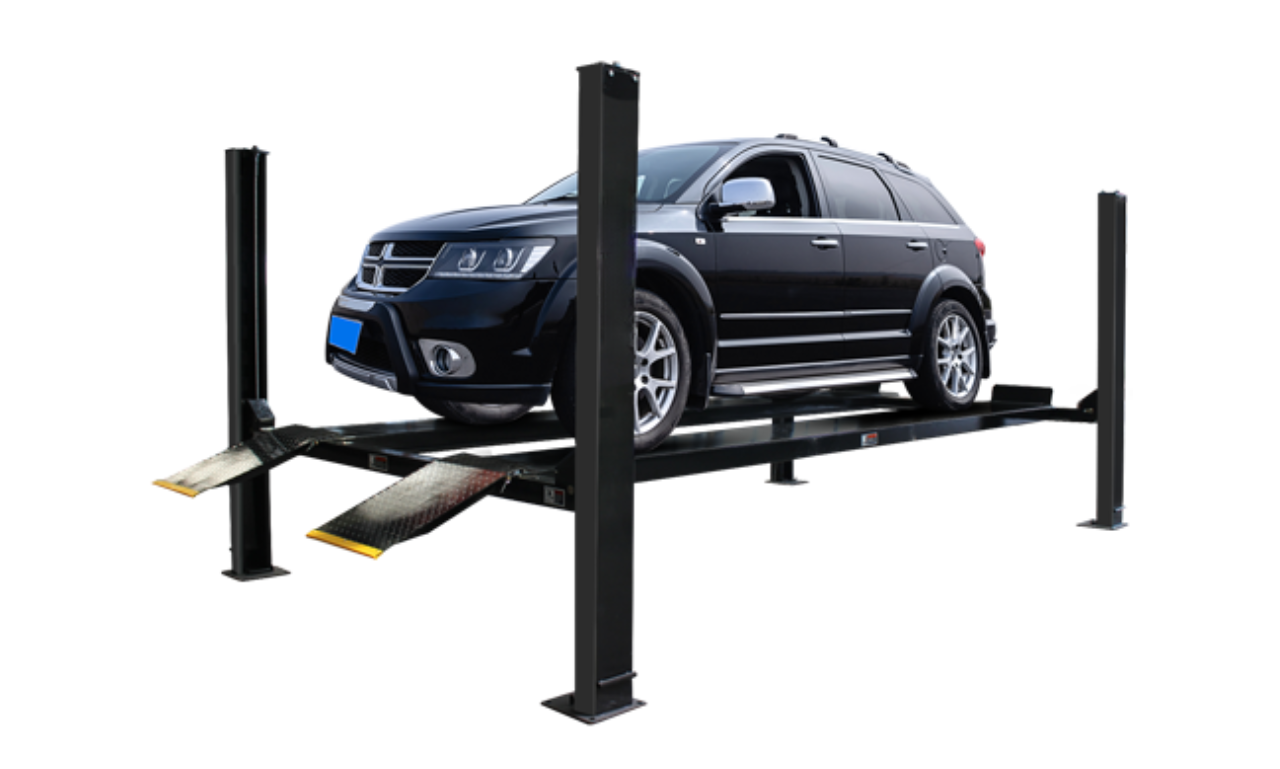

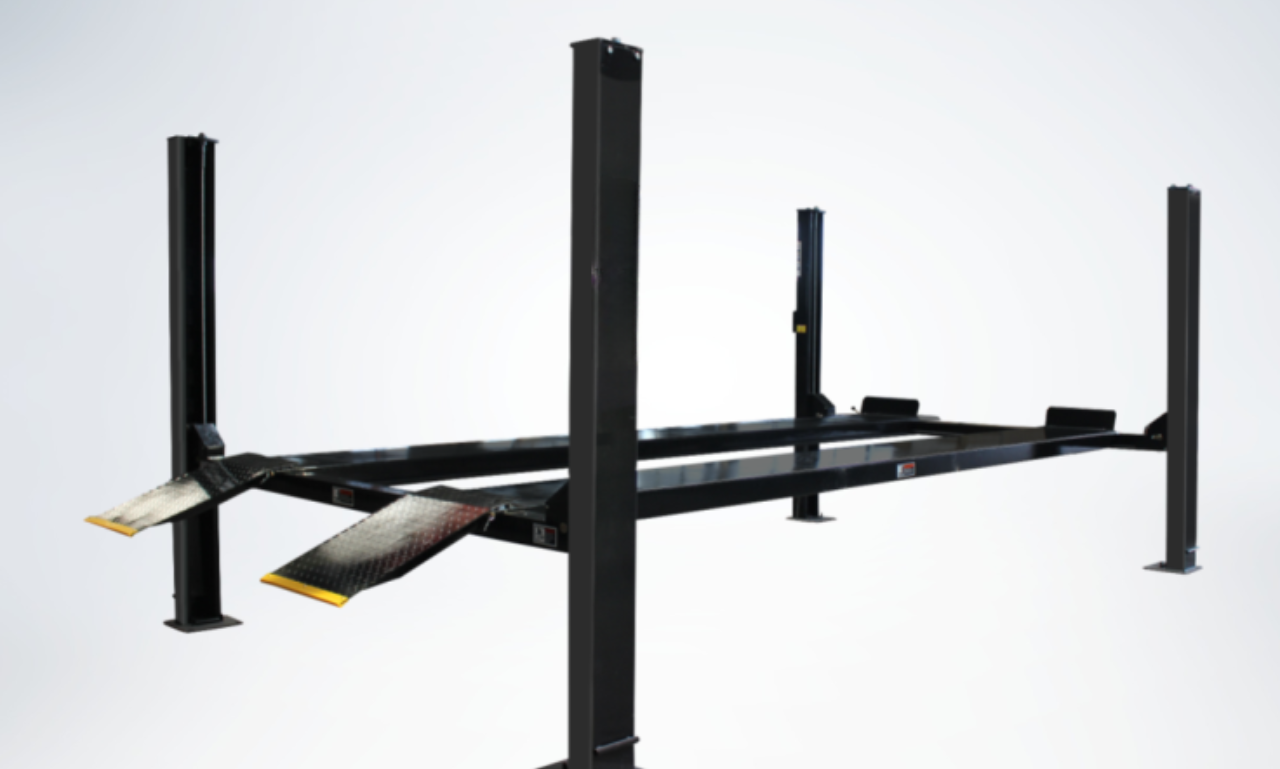

FOUR POST LIFT
SUITABLE FOR VEHICLES
It use high density slide blocks in the columns,Long service life.







| LxWxH | 5782.5 × 3354 × 2456 mm |
|---|---|
| Lifting Height | 2015 mm |
| Lifting Time | 50 s |
| Length of Columns | 3994 mm |
| Overall Length | 5782.5 mm |
| Inside Soleplate of Columns Width | 2463 mm |
| Overall Width | 3354 mm |
| Platform Length | 4693 mm |
| Lifting Capacity | (9000 lbs) 4000 kg |
| Runway Width | 508 mm |
| Width Between Runway | 994 mm |
| Packing Size | 5170 × 570 × 725 mm |
| Gross Weight | 1120 kg |

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage:
110v/220v/240v/380v/400v/415v
Whether you're managing a building or upgrading your home, our smart car lifts are built for efficiency, safety, and style.
