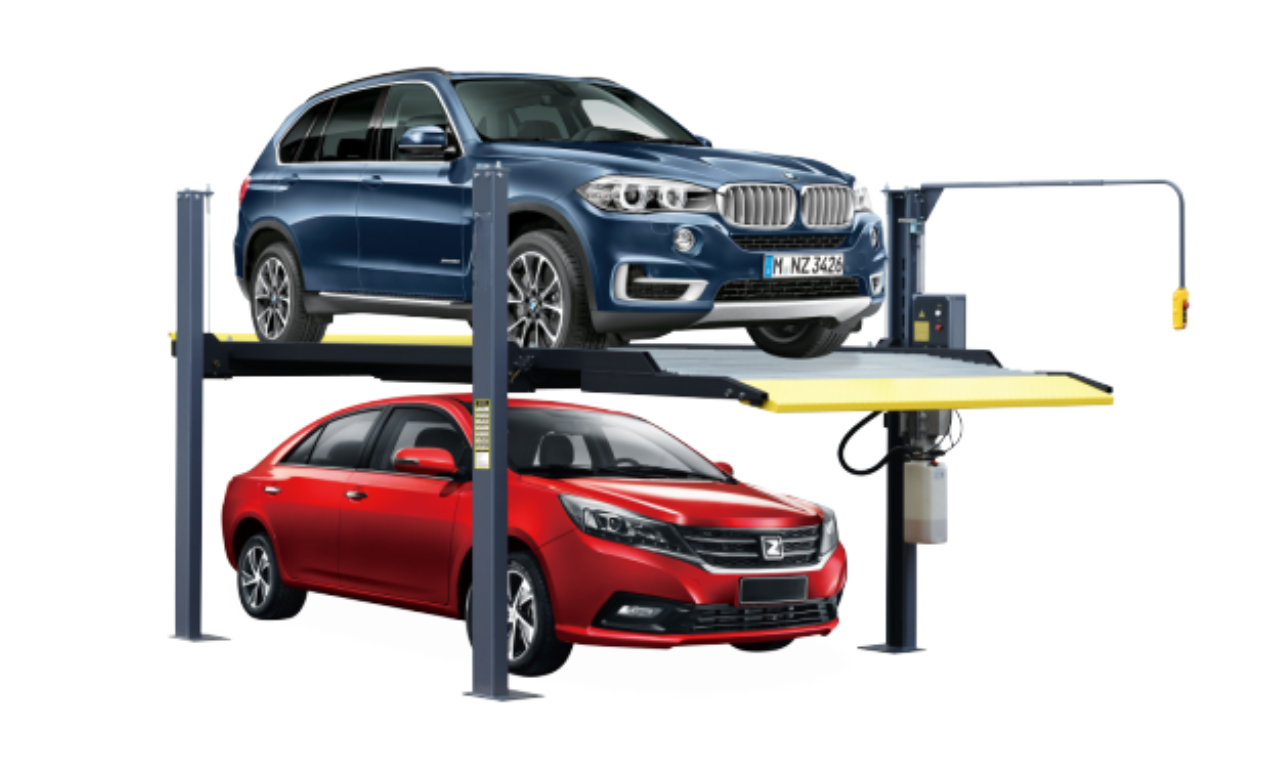

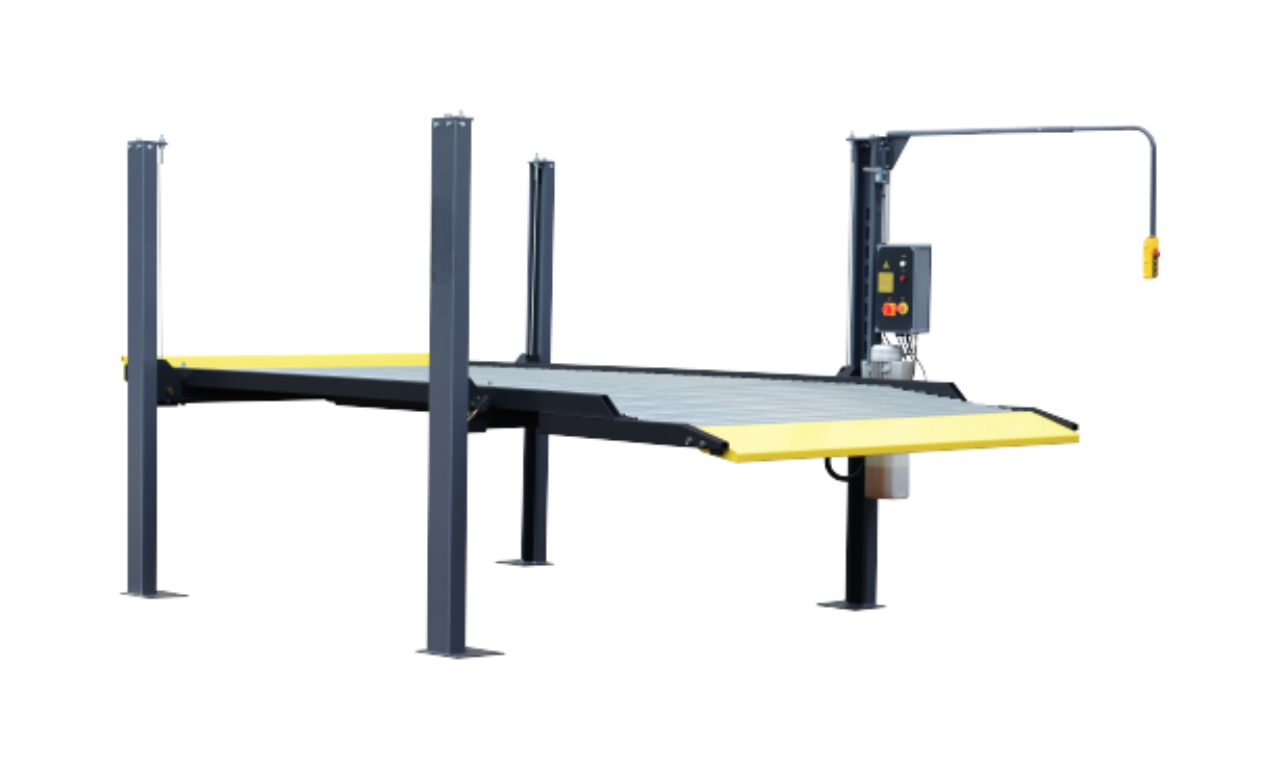

PP-8SU FOUR POST PARKING GARAGE LIFT
SUITABLE FOR VEHICLES
Beautiful appearance, save space

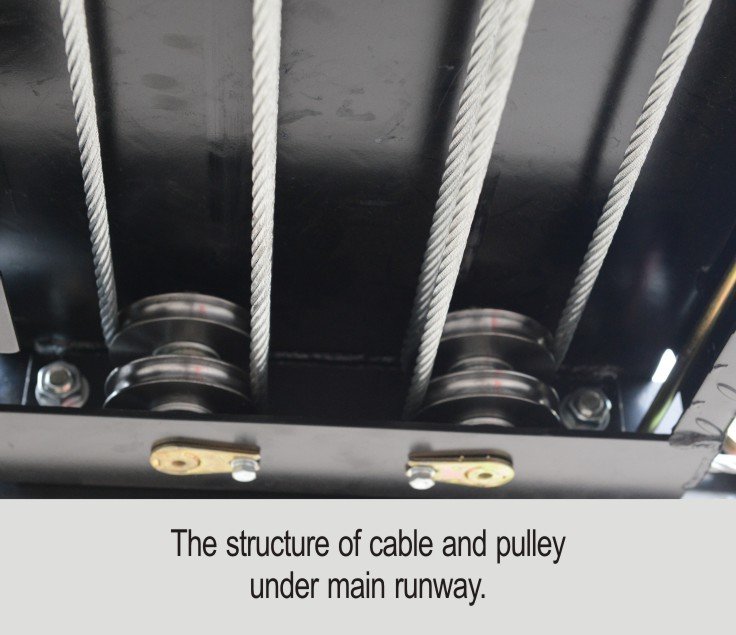

Beautiful appearance, save space Motor drive oil pump drive hydraulic cylinder, wire rope drive, quiet working environment Mechanical safety lock, can be arbitrarily locked in the design range of the height of the operation, safe and reliable The levelness of the four angles in the locked position can be adjusted A set of throttle valves is installed in the oil circuit
| LxWxH | 5170 × 2845 × 2476 mm |
|---|---|
| Lifting Height | 2000 mm |
| Lifting Time | 50 s |
| Length of Columns | 3995 mm |
| Overall Length | 5170 mm |
| Inside Soleplate of Columns Width | 2190 mm |
| Overall Width | 2845 mm |
| Platform Length | 5008 mm |
| Lifting Capacity | (8000 lbs) 3600 kg |
| Runway Width | 2312 mm |
| Packing Size | 5000 × 570 × 1110 mm |
| Gross Weight | 1005 kg |

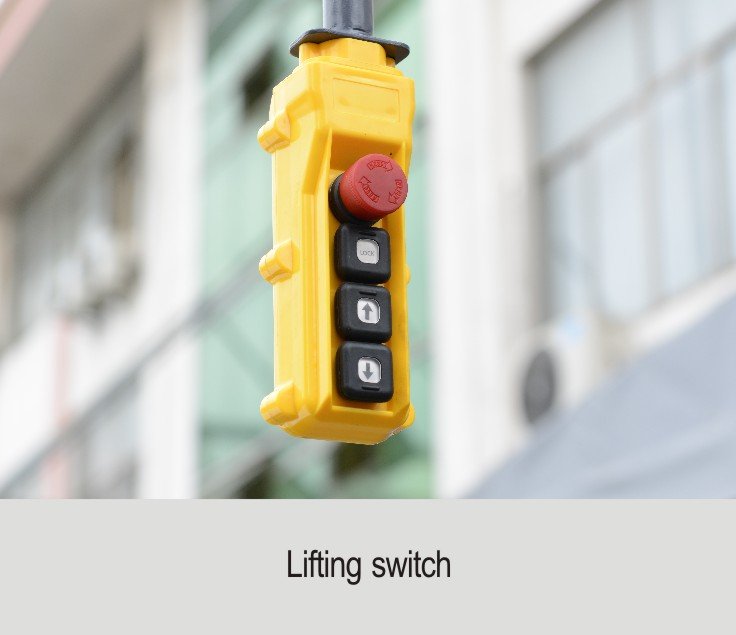

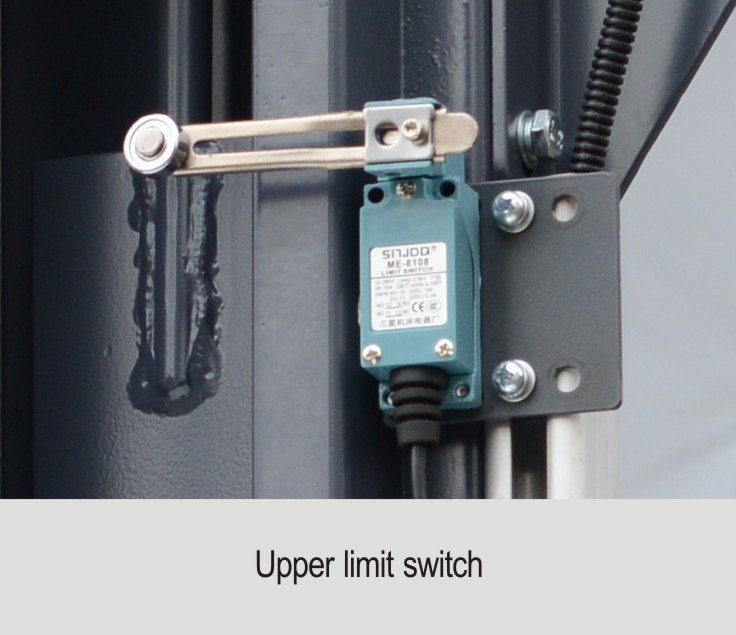

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage：
110v/220v/240v/380v/400v/415v
