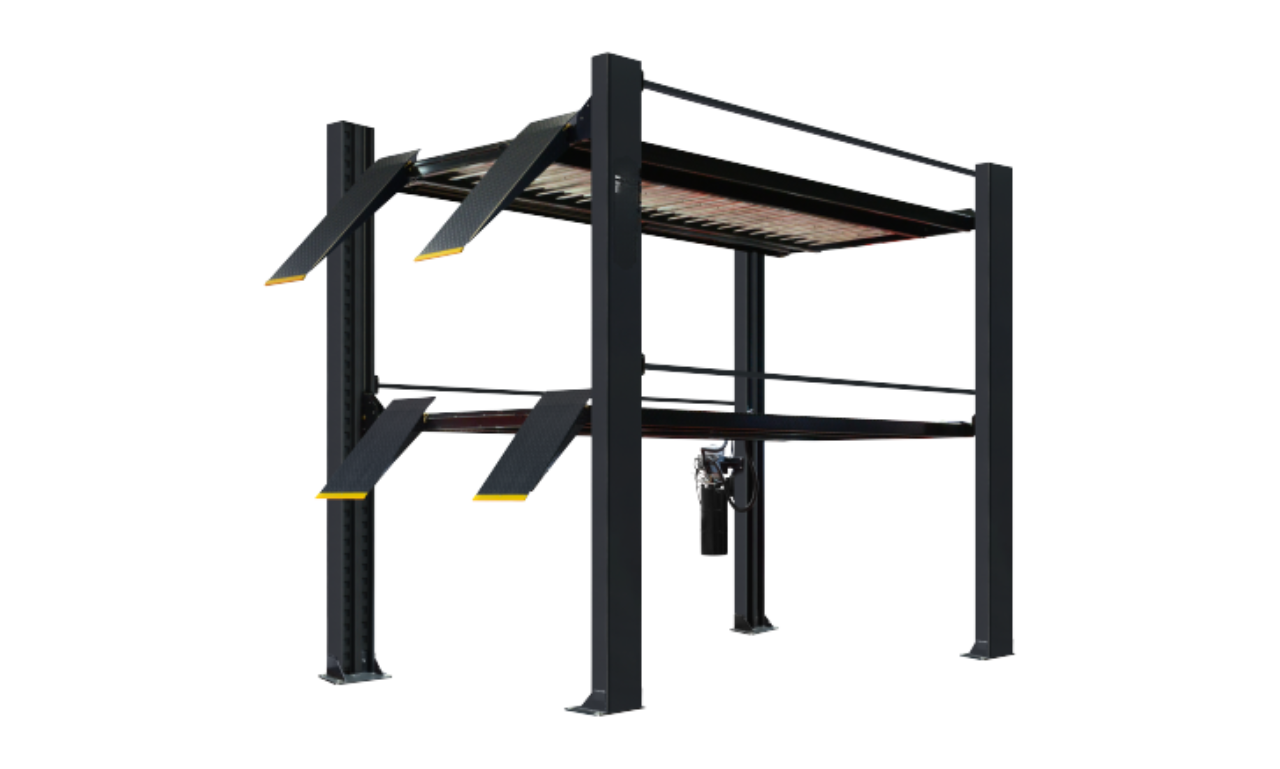

MULTI LEVEL PARKING LIFT
SUITABLE FOR VEHICLES

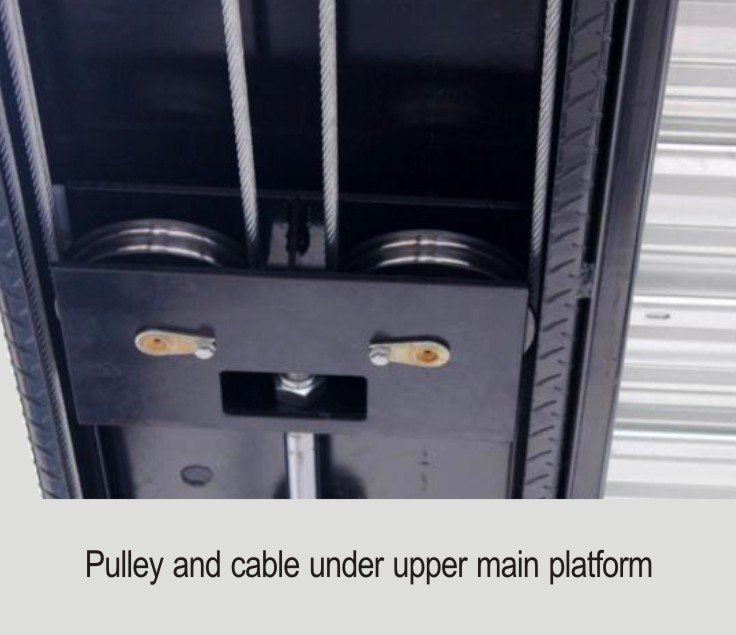

Offside Runway. The other Runway. It does not have a Hydraulic Cylinder or Cables under it.
Flex Tubes. Not shown. A flexible, black tube that attaches to an opening on the Powerside Runway on one end and to the Power Unit on the other end. Used for protecting the Return Line, Air Line, and Hydraulic Hose (and Microswitch Cable for Upper Platform) as they are routed to the Power Unit. One Flex Tube per Platform.
| LxWxH | 6153 × 2806 × 4010 mm |
|---|---|
| Lifting Height | 3679 mm |
| Lifting Time | 50 s |
| Length of Columns | 4010 mm |
| Overall Length | 6153 mm |
| Inside Soleplate of Columns Width | 2298 mm |
| Overall Width | 2806 mm |
| Platform Length | 4256 mm |
| Upper/Lower Lifting Capacity | 9000 lbs / 7000 lbs |
| Runway Width | 484 mm |
| Width Between Runway | 1119 mm |
| Packing Size | 4888 × 570 × 800 mm / 4576 × 570 × 800 mm |
| Gross Weight | 2912 kg |

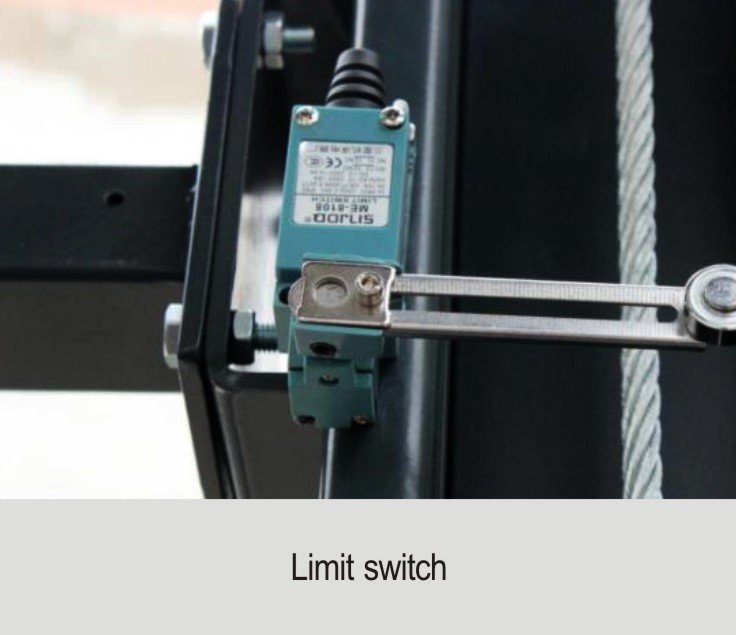

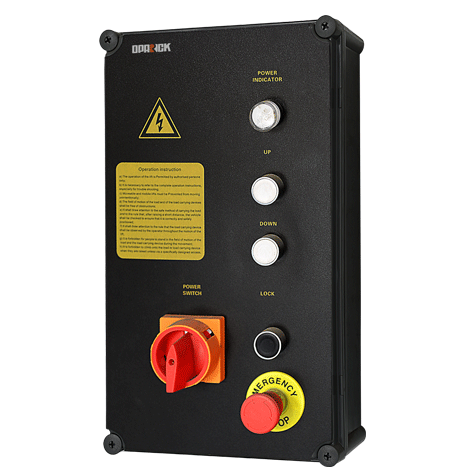

Size25cmX13.5cmX44cm,up and down switch, drop switch, indicator light, emergency stop switch, upper and lower limit, buzzer warning, forced start, wire rope breaking protection device,secondry lift limit switch, electronic pneumatic.
Optional voltage：
110v/220v/240v/380v/400v/415v
